TDRS-M Orbital Mechanics and Trajectory Design

Role

Team Member — Trajectory Design & Orbital Mechanics Analysis

AE 313: Space Mechanics · ERAU · Fall 2025

Tools

MATLAB · ode45 · Vis-Viva Equation
Tsiolkovsky Rocket Equation · Hohmann Transfer Theory

Key Contributions

Propagated a 300 km LEO parking orbit with sub-10⁻⁵ km position error using ode45 at RelTol = AbsTol = 10⁻⁹
Computed a full Δv budget of 5.36 km/s for the LEO → GTO → GEO sequence including a 28.5° plane change
Designed a phasing maneuver correcting a 5° GEO longitude offset for only 0.028 km/s — under 0.6% of total mission Δv
Benchmarked all results against real TDRS-M (2017) mission data and explained the 5.36 vs. 2.0 km/s discrepancy

5.36 km/s

Total Mission Δv

5.48 hr

LEO → GEO Transfer Time

82%

Propellant Mass Fraction

0.028 km/s

Phasing Maneuver Cost

This page walks through the full trajectory design for a TDRS-M-class spacecraft — propagating the LEO parking orbit, computing the LEO–GTO–GEO Δv and propellant budget, designing a GEO phasing maneuver, and benchmarking every result against the real 2017 TDRS-M mission.

Mission Context

NASA’s Tracking and Data Relay Satellite System (TDRS) provides continuous communication links between LEO spacecraft — including the International Space Station and Hubble Space Telescope — and ground networks. Reaching the geostationary belt at 35,786 km altitude from a 300 km parking orbit demands a carefully sequenced multi-burn ascent that consumes the overwhelming majority of a spacecraft’s propellant. This project simulated the complete orbital trajectory and maneuver sequence for a TDRS-M-class spacecraft, analyzed the full Δv and mass budget, and designed a longitudinal phasing correction at GEO.

Propagate a 300 km circular parking orbit via two-body equations of motion integrated with ode45
Compute Δv for the full LEO → GTO → GEO sequence, including a 28.5° plane change at apogee
Estimate propellant mass and mass fraction using the Tsiolkovsky Rocket Equation (I_sp = 320 s)
Extract Classical Orbital Elements (COEs) at every major mission stage
Design and numerically validate a phasing maneuver correcting a 5° longitude offset between two GEO spacecraft
Benchmark all simulation results against real TDRS-M (2017) mission data

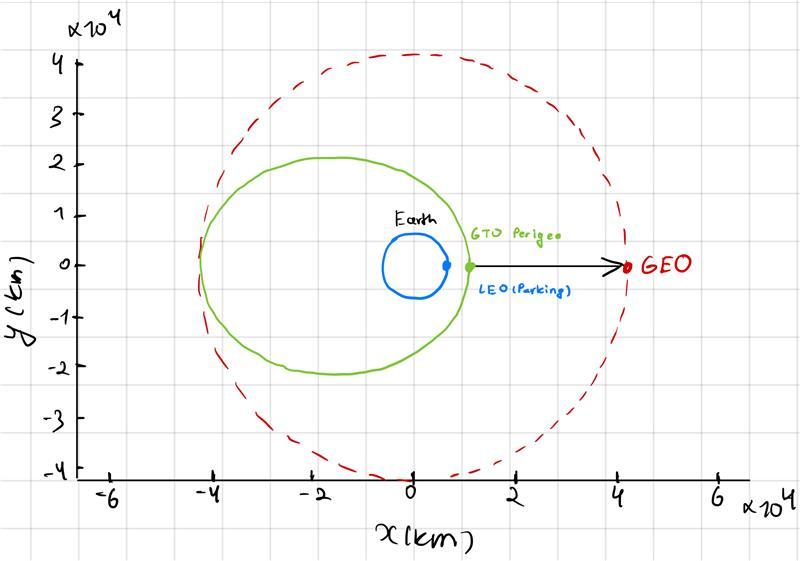

TDRS-M ascent trajectory schematic – LEO parking orbit, GTO transfer ellipse, and GEO circle — Fig. 1: Mission ascent schematic — LEO parking orbit (blue), Hohmann transfer ellipse through GTO perigee (green), and final GEO circle (red dashed)

Phase 1 — LEO Parking Orbit Propagation

The spacecraft begins in a 300 km circular equatorial parking orbit at r₀ = R_E + 300 = 6678 km. Circular velocity follows directly from Earth’s gravitational parameter μ_E = 398,600.418 km³/s²:

V_circ = √(μ/r₀) = 7.73 km/s

Starting from the Cartesian state r(0) = [6678, 0, 0] km and v(0) = [0, 7.73, 0] km/s, I integrated the two-body equations of motion for exactly one orbital period T = 2π√(r₀³/μ) = 5400 s using MATLAB’s ode45 at RelTol = AbsTol = 10⁻⁹.

Classical Orbital Elements for this phase: a = 6678 km · e = 0 · i = 28.5° · Ω = 0° · ω = 0° · θ = 0°.

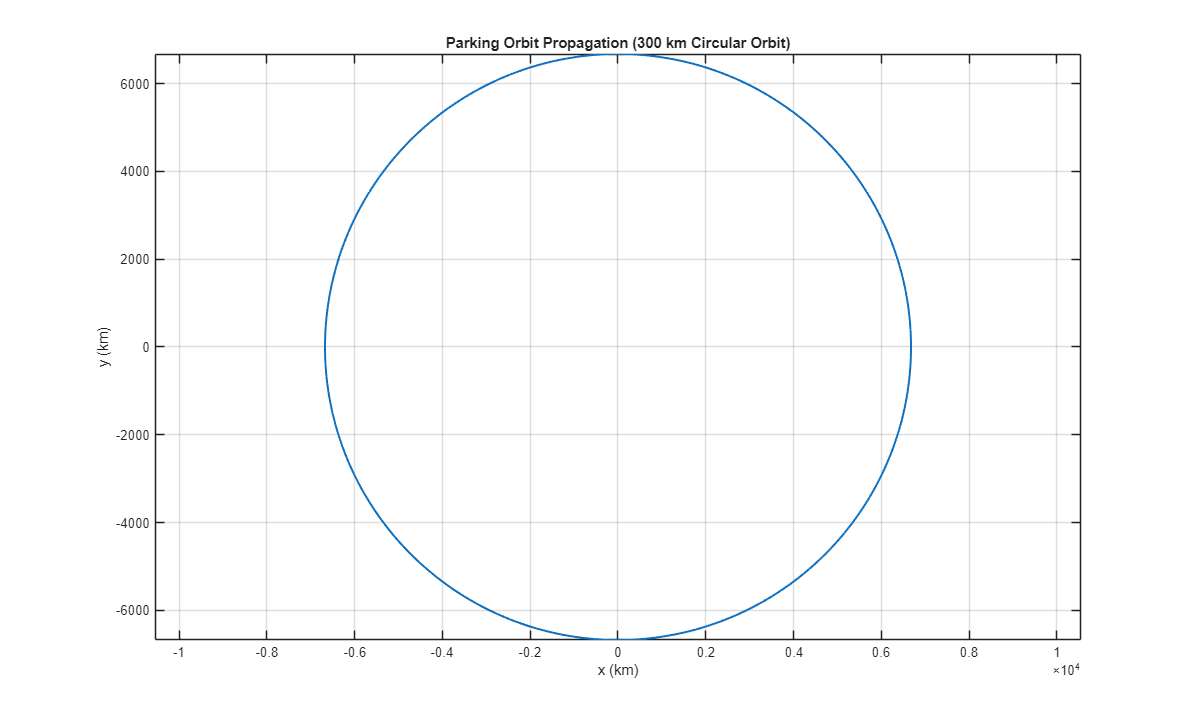

2D parking orbit propagation – closed circular trajectory at 6678 km radius — Fig. 2: 2D propagation of the 300 km parking orbit in the ECI frame — a perfectly closed circle at r = 6678 km

3D ECI frame orbit propagation with Earth sphere — Fig. 3: 3D ECI frame visualization showing the orbit lying entirely in the equatorial plane, consistent with zero inclination initial state

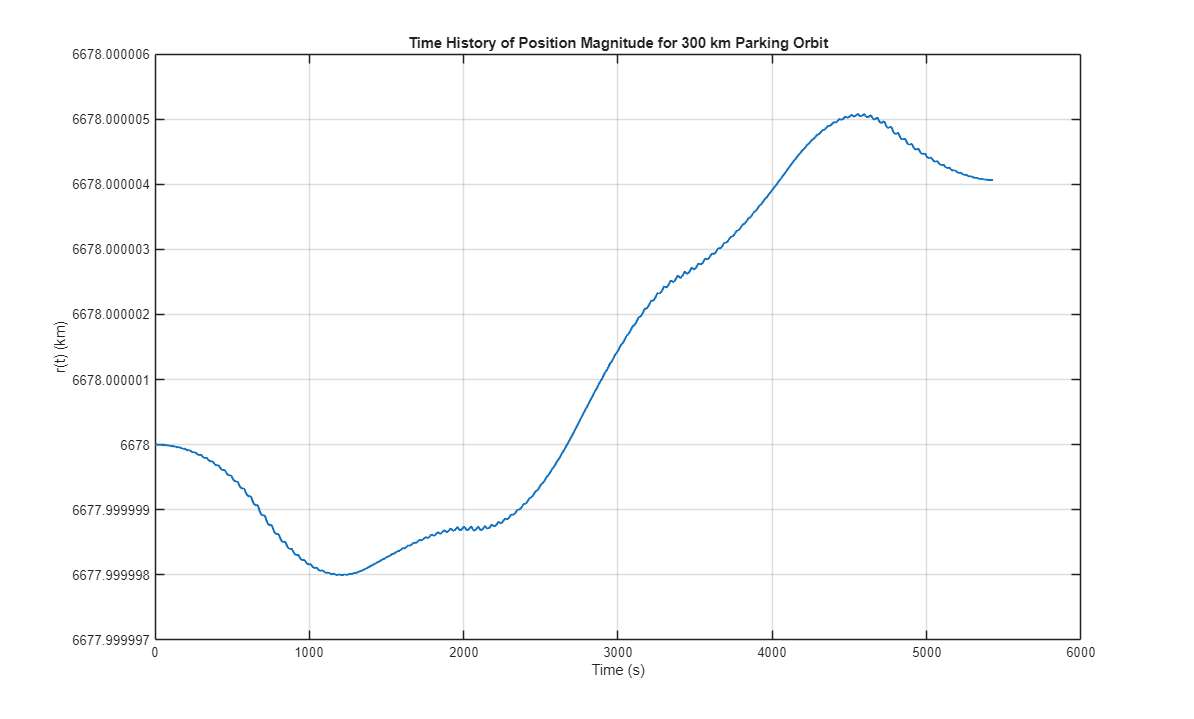

Position magnitude vs time – constant 6678 km — Fig. 4: Position magnitude over one full 5400 s orbit — variation is sub-10⁻⁵ km, confirming circular motion and propagator numerical stability

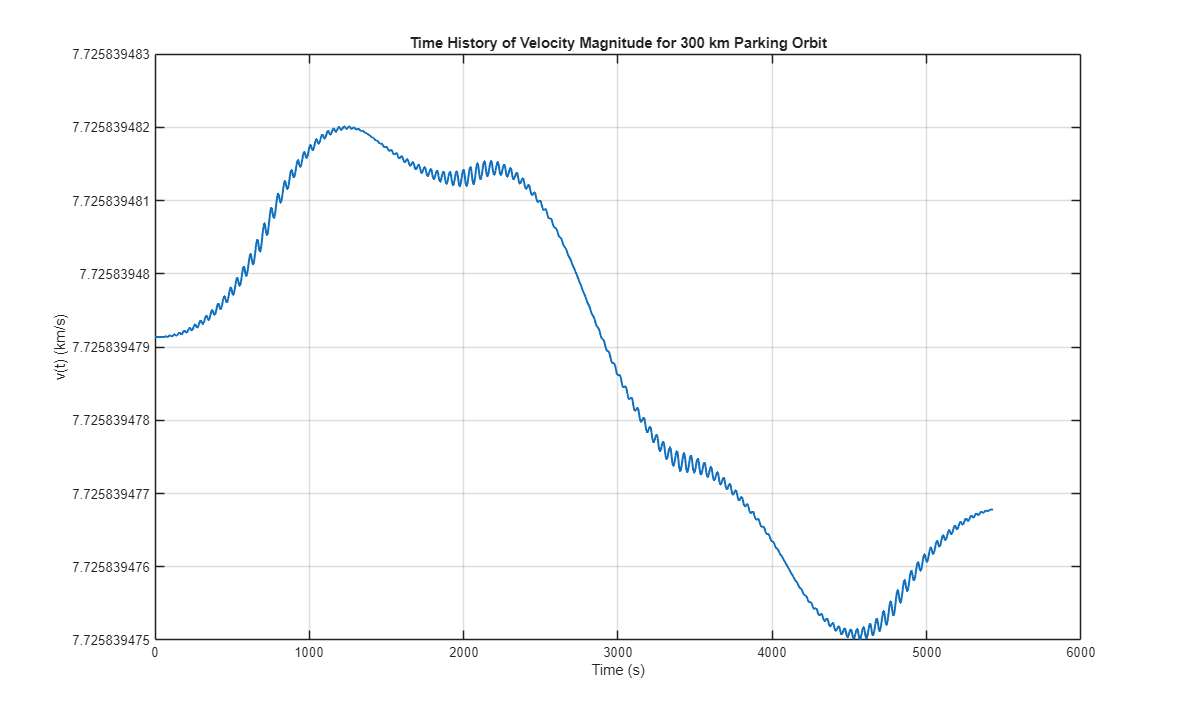

Velocity magnitude vs time – constant 7.726 km/s — Fig. 5: Velocity magnitude over the same period — locked near 7.7258 km/s, with sub-nanometer-per-second variation consistent with a circular orbit

Phase 2 — Hohmann Transfer (LEO → GTO)

A Hohmann transfer ellipse connects the parking orbit at r_p = 6678 km to GEO altitude at r_a = 42,164 km. I applied the vis-viva equation at both endpoints of the transfer orbit:

v = √[μ(2/r − 1/a)]

Transfer semi-major axis: a_t = (6678 + 42164) / 2 = 24,421 km
Transfer perigee velocity: V_p,t = 10.15 km/s
Transfer apogee velocity: V_a,t = 1.61 km/s
Transfer orbit period: T_t = 10.95 hr → time to apogee: t_PA = 5.48 hr
GTO injection burn: Δv₁ = 10.15 − 7.73 = 2.42 km/s

This first burn is the most energetically demanding maneuver of the entire mission, consuming 45% of the total Δv budget in a single impulsive firing at LEO perigee.

Phase 3 — GEO Insertion & Plane Change

At transfer apogee (r = 42,164 km), the spacecraft must both circularize its orbit and reduce inclination from 28.5° to 0°. Performing the plane change here — where the spacecraft velocity is at its minimum of 3.07 km/s — is the mission-critical sequencing decision. The same 28.5° inclination reduction performed at LEO perigee (v = 10.15 km/s) would cost approximately 5.00 km/s, making the propellant budget completely infeasible.

Design Decision

Trade-off: Combined the circularization burn and the 28.5° plane change into a single maneuver at GTO apogee, rather than splitting the inclination change across multiple lower-altitude burns.

Why: Plane-change cost scales directly with spacecraft velocity (Δv_inc = 2V sin(Δi/2)), and apogee is the slowest point on the transfer orbit. Performing the same 28.5° rotation at LEO perigee would cost ~5.00 km/s versus 1.50 km/s at apogee — a 3.5 km/s saving from sequencing alone, the single largest lever in the entire Δv budget.

The two burns at GEO apogee were analyzed separately:

Δv_circ = V_GEO − V_a,t = 3.07 − 1.61 = 1.46 km/s

Δv_inc = 2 V_GEO sin(Δi / 2) = 2(3.07) sin(14.25°) = 1.50 km/s

Total mission Δv: 2.42 + 1.46 + 1.50 = 5.36 km/s.

Propellant mass was estimated using the Tsiolkovsky Rocket Equation:

m₀ / m_f = e^Δv/V_e = e^5.36/3.139 = 5.53

Initial mass m₀ = 3500 kg · specific impulse I_sp = 320 s · exhaust velocity V_e = 3.139 km/s
Final mass m_f = 633 kg
Propellant mass m_p = 2867 kg — a propellant mass fraction of 82%

Phase 4 — GEO Phasing Maneuver

With both spacecraft in GEO, an interceptor leading its target by Δθ₀ = 5° in longitude needs to slow its drift rate and allow the target to catch up. The strategy is to raise the interceptor into a phasing ellipse with a slightly longer period. The required phasing orbit semi-major axis satisfies:

T_phase / T_GEO = 1 + Δθ / 2π

Computed phasing orbit parameters:

Phasing semi-major axis: a_phase = 42,554 km
Phasing apogee radius: r_a = 42,943 km (approximately 758 km above GEO)
Maneuver duration: 24.3 hours
Burn 1 (enter phasing orbit): Δv₁ = 0.014 km/s
Burn 2 (return to GEO): Δv₂ = 0.014 km/s
Total phasing cost: 0.028 km/s — less than 0.6% of total mission Δv

Numerical propagation using ode45 tracked both spacecraft simultaneously in the ECI frame, confirming that the relative longitude decreased smoothly from 5° to 0° over the 24.3-hour window.

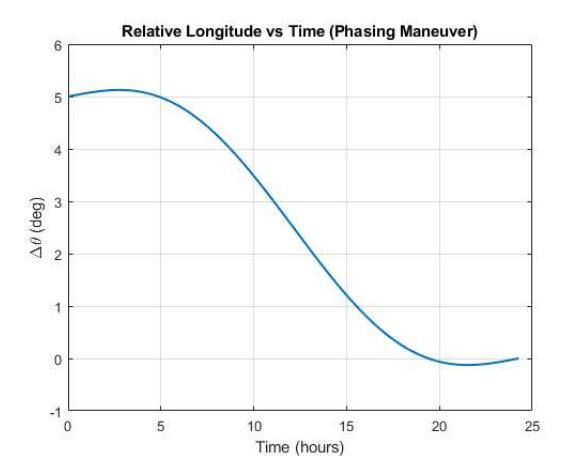

Relative longitude vs time – phasing maneuver convergence from 5 to 0 degrees — Fig. 6: Relative longitude Δθ vs time — smooth convergence from 5° to 0° over 24.3 hours as the interceptor waits in its higher phasing orbit

Mission Results & Real-World Comparison

Δv Budget Summary:

Maneuver	Δv (km/s)	Details
LEO → GTO injection	2.42	7.73 → 10.15 km/s at LEO perigee
GEO circularization	1.46	1.61 → 3.07 km/s at GEO apogee
28.5° plane change	1.50	Performed at apogee; perigee equivalent ≈ 5.00 km/s
Total	5.36	—

Simulation vs. Real TDRS-M (2017):

Parameter	This Simulation	Real TDRS-M
Total spacecraft Δv	5.36 km/s	~2.0 km/s
Propellant fraction	82%	42% (R-4D engine, I_sp = 312 s)
GTO type	Standard 28.5° GTO	Supersynchronous (26.2°, perigee 4700 km)
Inclination reduction	Full 28.5° by spacecraft	Mostly by Delta IV M+ launch vehicle
Plane change Δv	1.50 km/s	<0.5 km/s

The ~2.7× gap in spacecraft Δv between this simulation and the real mission is not an error — it is a deliberate consequence of the analysis scope. Real GEO missions off-load the bulk of inclination reduction to the launch vehicle through a supersynchronous GTO injection profile. By forcing the spacecraft to carry out every maneuver from scratch, this analysis isolates exactly how much each burn costs and why launch vehicle selection is the dominant driver of propellant budget on any GEO mission.

Design Decision

Trade-off: Modeled the spacecraft performing the full 28.5° inclination reduction itself, rather than assuming a launch vehicle absorbs most of it via a supersynchronous transfer orbit.

Why: Carrying every maneuver from scratch isolates the true cost of each burn, producing a conservative spacecraft Δv of 5.36 km/s against the real TDRS-M’s ~2.0 km/s — making clear how much of a real mission’s propellant budget is actually determined by the launch vehicle, not the spacecraft.

Key Takeaways

Always perform plane changes at apogee.

The 28.5° inclination reduction cost 1.50 km/s at GEO vs. ~5.00 km/s at LEO perigee — a 3.5 km/s saving from a single sequencing decision. This principle is fundamental to every GEO mission trajectory design.

Launch vehicles do the heavy lifting.

TDRS-M’s Delta IV M+ absorbed most of the inclination reduction through a supersynchronous GTO, cutting the spacecraft’s propellant fraction from 82% to 42%. The injection profile is just as important as the onboard propulsion system.

Phasing orbits are remarkably fuel-efficient.

Correcting a 5° longitude error cost only 0.028 km/s — less than 0.6% of total mission Δv. This efficiency makes phasing the standard technique for GEO slot acquisition, satellite repositioning, and on-orbit rendezvous.

Solver tolerance discipline matters.

Setting ode45 to RelTol = AbsTol = 10⁻⁹ held position error below 10⁻⁵ km over 5400 seconds. That same rigor is what separates a preliminary-design simulation from one that can actually feed a propellant budget calculation.
